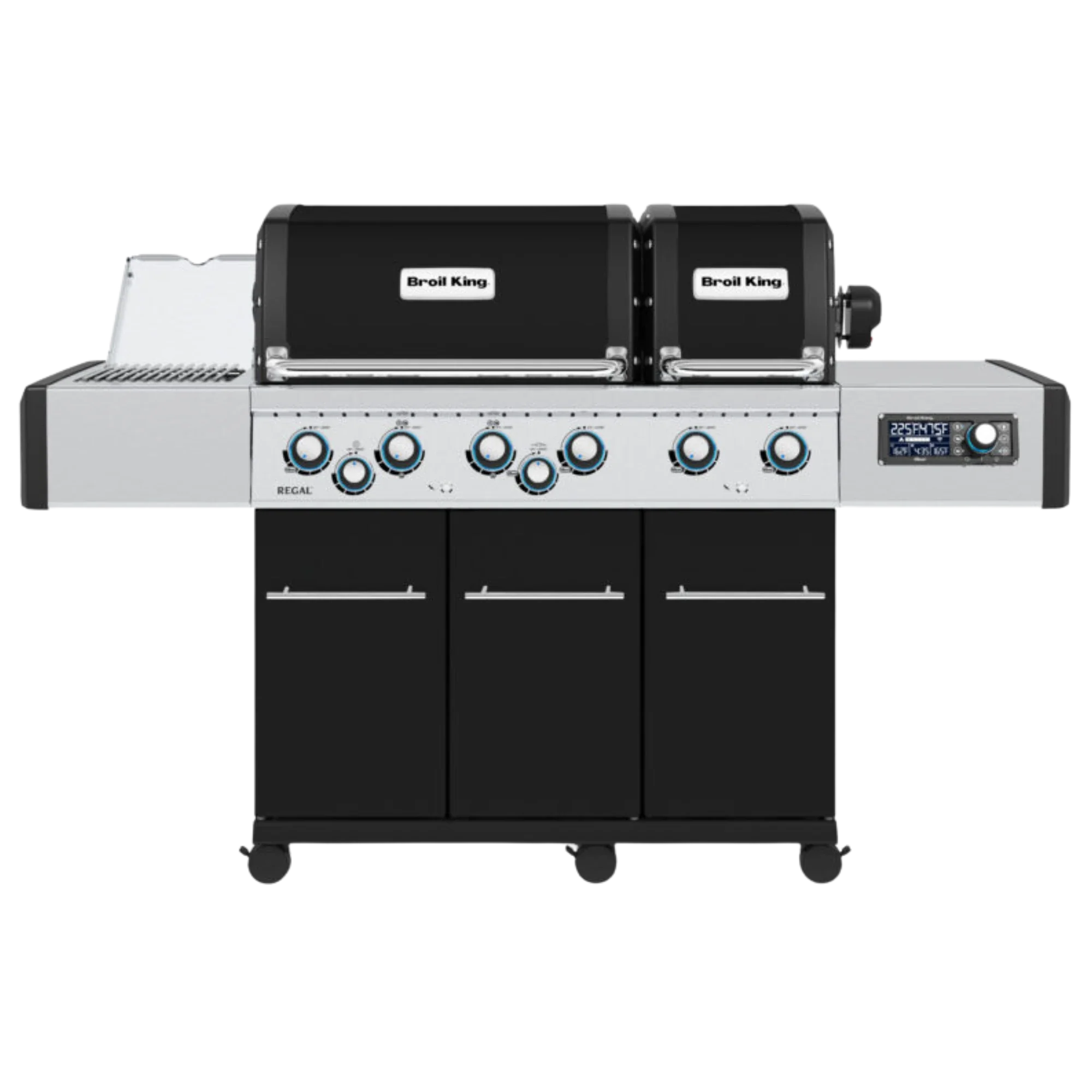

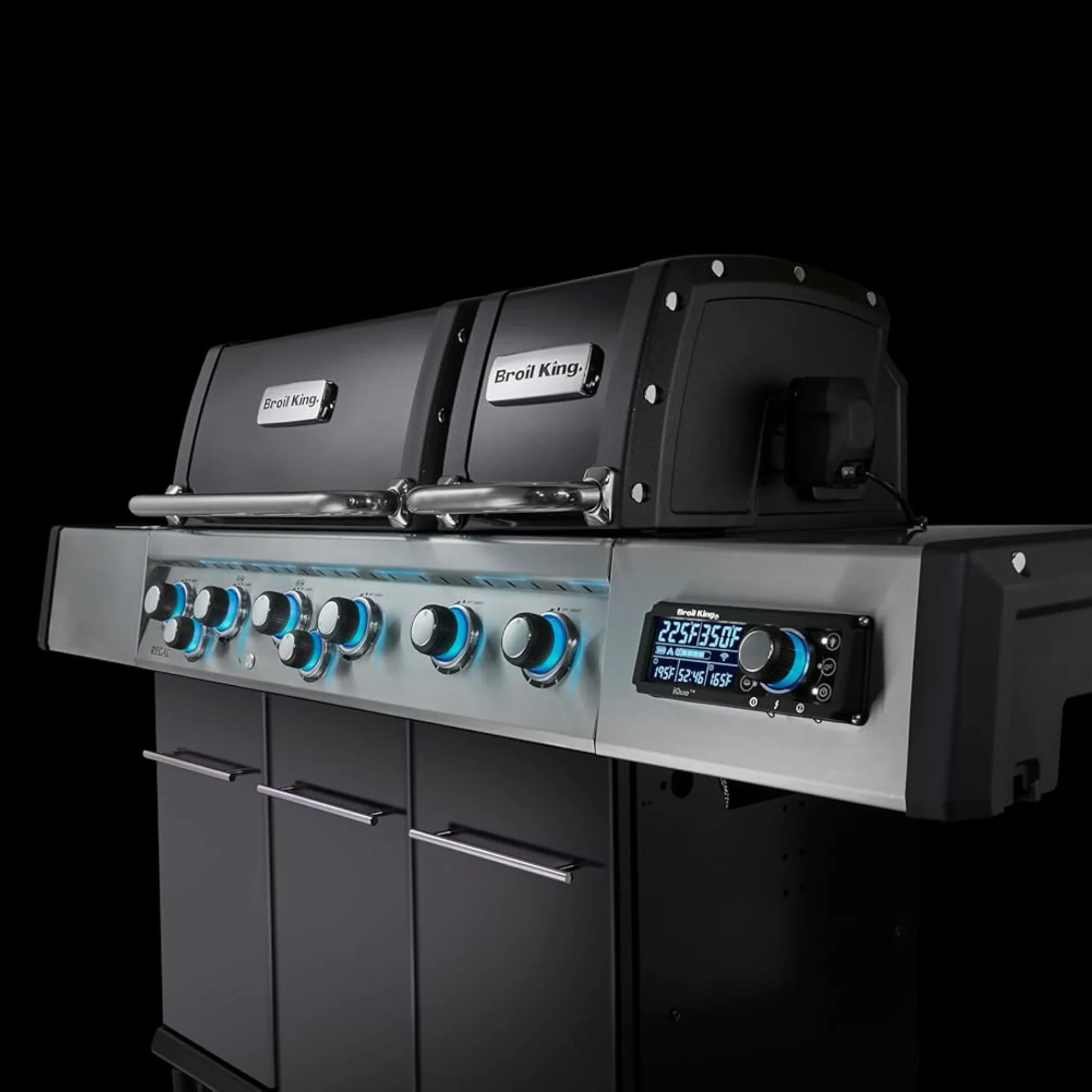

Broil King Regal 6-Burners QS 690 Pro IR Gas Grill w/ Rotisserie Kit

Overview:

---

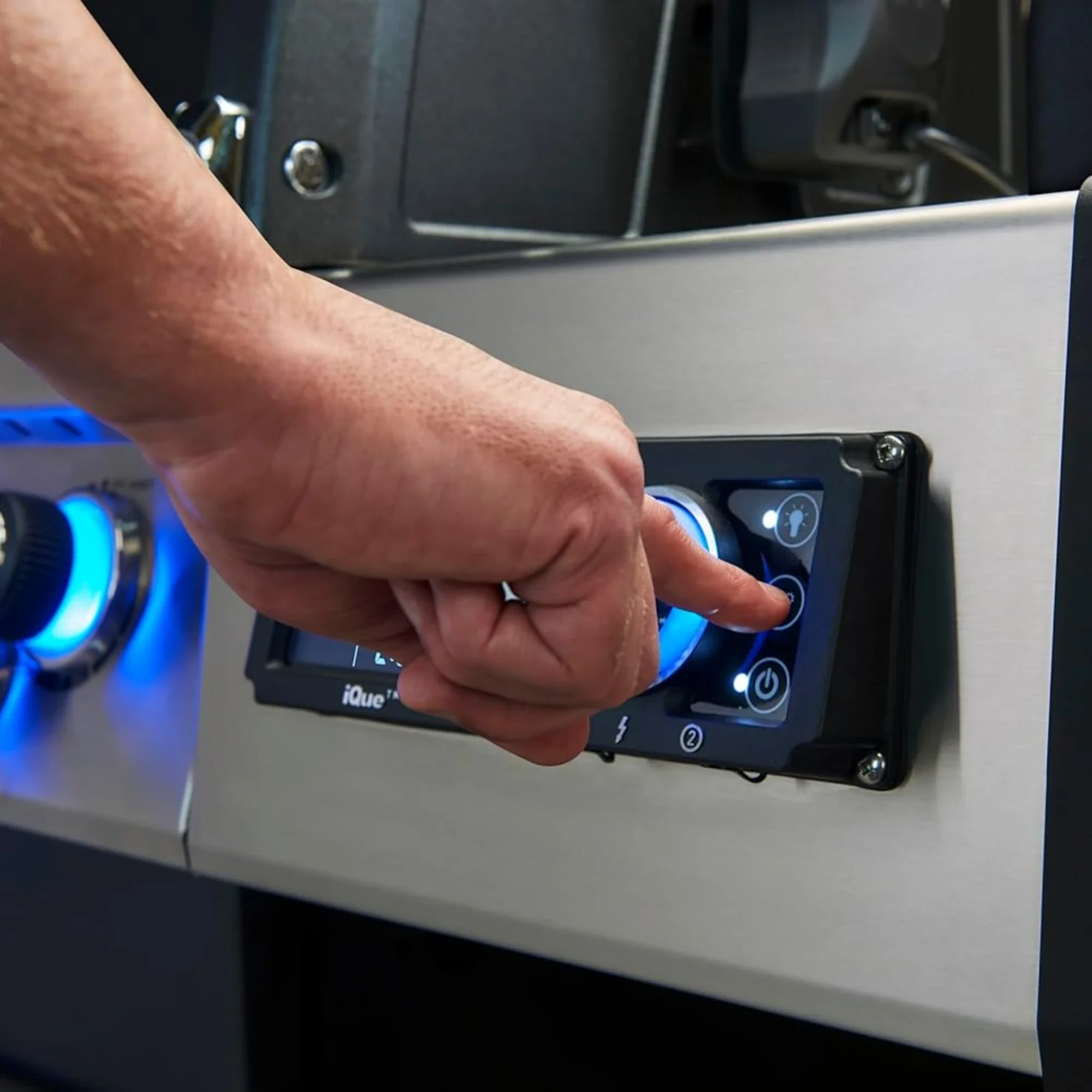

The Broil King Regal QS 690 Pro IR is built for grill masters who want professional performance at home. Featuring iQue Technology and two fully independent ovens, this premium grill delivers unmatched precision and versatility. With 750 sq. in. of total cooking space, solid 9 mm stainless steel grates, and the Flav-R-Wave system, it ensures even heat and incredible flavor every time. Add in six Dual-Tube burners, a powerful infrared sear burner, and a rear rotisserie kit, and you’ve got a grill that can handle everything from steaks to slow-roasted chicken.

Key Features:

---

• 750 sq. in. total cooking space – includes two stainless steel warming racks.

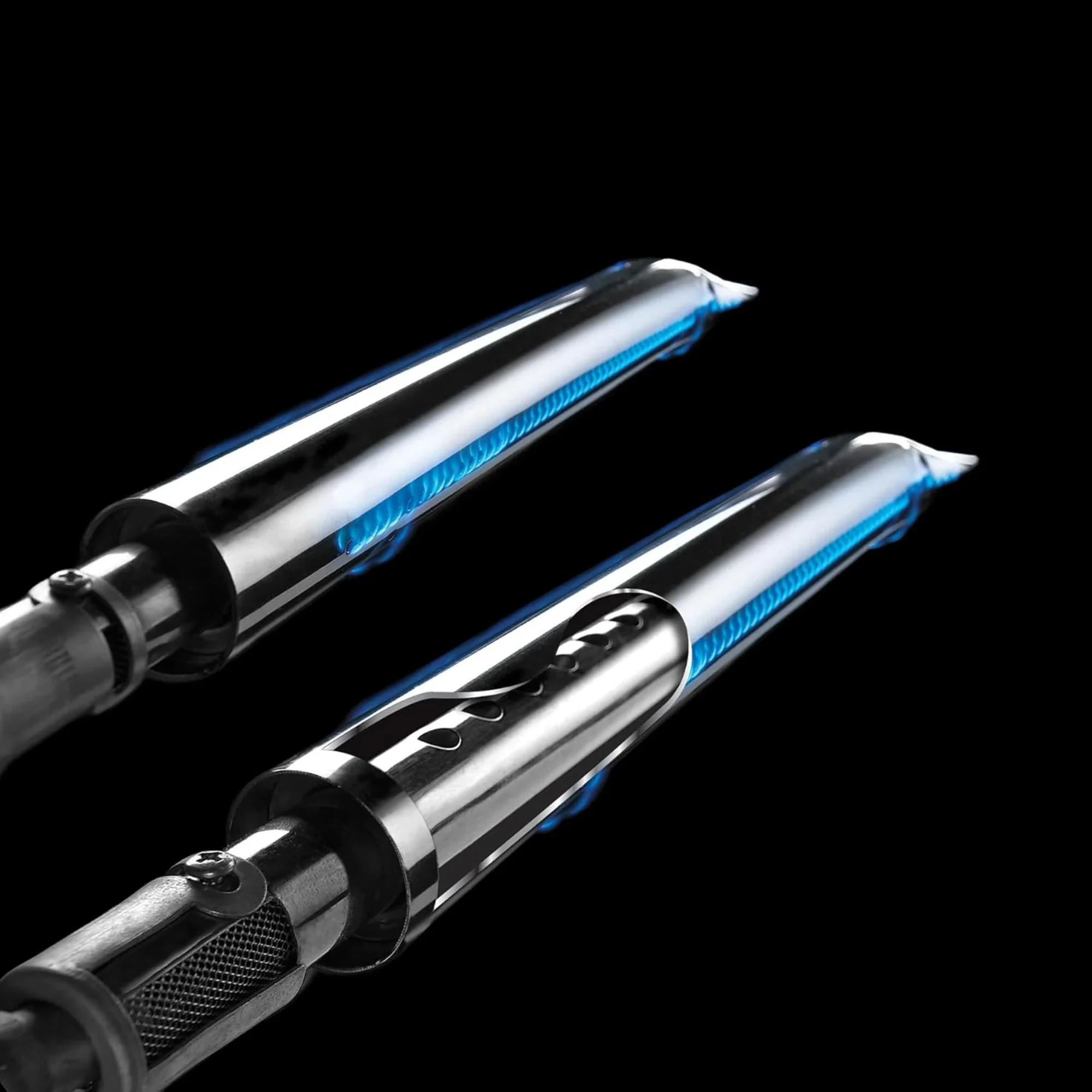

• 6 Dual-Tube stainless steel burners delivering 60,000 BTUs.

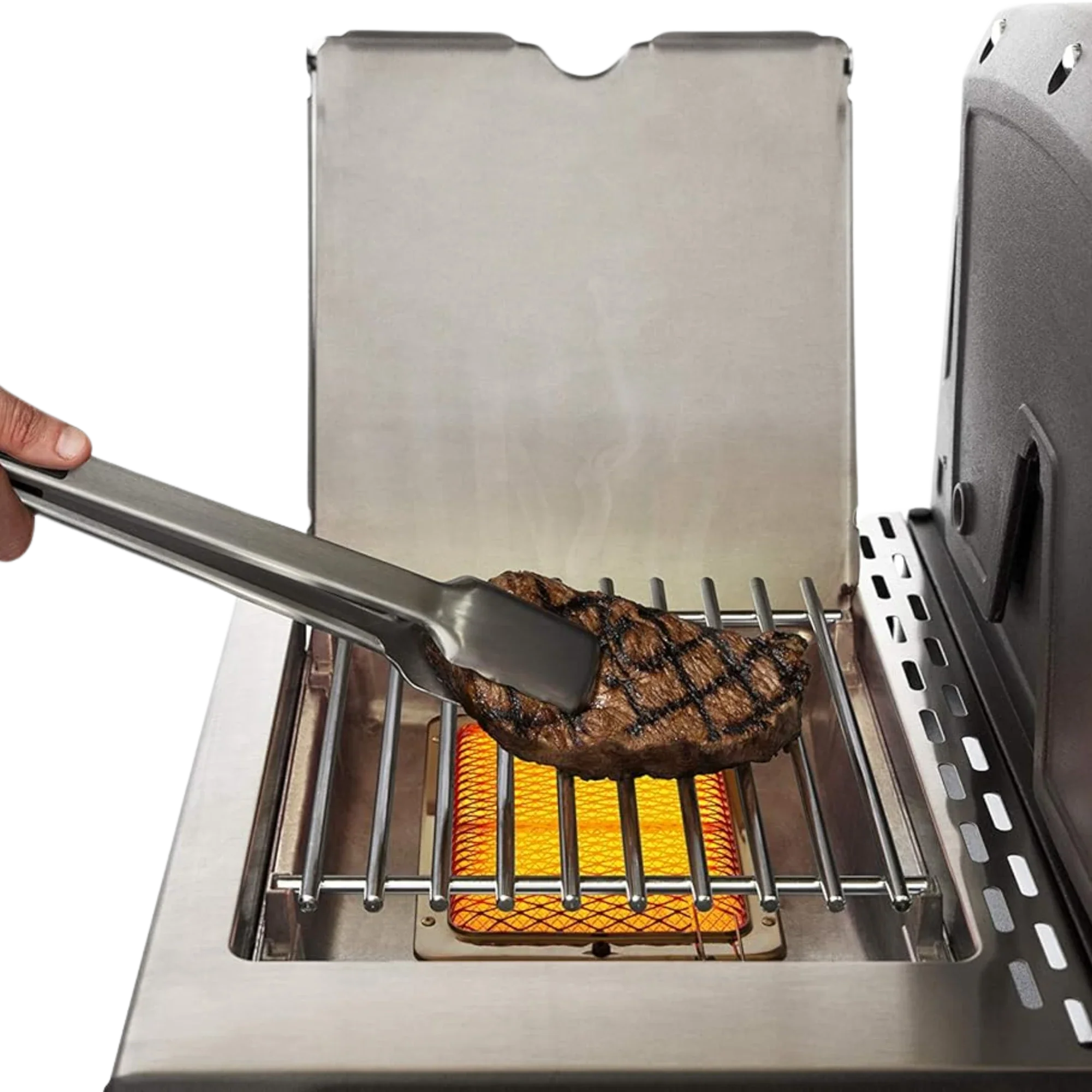

• Infrared side burner (10,000 BTUs) for perfect high-heat searing.

• Rotisserie burner (15,000 BTUs) + kit included for delicious, even roasting.

• Two independent ovens for versatile cooking control.

• Solid 9 mm stainless steel cooking grates – wide and narrow for flexibility.

• Flav-R-Wave system enhances flavor and distributes heat evenly.

• Built-in control knob lights for easy nighttime grilling.

• Durable enclosed cabinet base & stainless steel side shelves for storage and prep.

Specifications:

---

Height	49.2 in
Depth	24.8 in
Width	70.0 in
Main Burner System	60,000 BTU stainless steel Dual-Tube burners
Infrared Side Burner	10,000 BTU, 8 mm stainless steel rod grids
Rear Rotisserie Burner	15,000 BTU stainless steel, rotisserie kit included
Total Cooking Space	1,030 sq. in. (includes porcelain-coated warming rack)
Large Cook Box	750 sq. in., solid 9 mm stainless steel rod grids
Small Cook Box	250 sq. in., heavy-duty cast iron cooking grids
Cook Boxes	Two completely separate cook boxes
Cooking System	Stainless steel Flav-R-Wave system
Burner Controls	Linear-Flow valves with 180° sensi-touch control
Ignition System	Sure-lite™ electronic ignition system
Temperature Gauges	Two Deluxe Accu-Temp thermometers
Hood & Cook Box Material	Stainless steel hood panel and cook box with cast aluminum end caps
Control Panel & Side Shelves	Stainless steel with cast aluminum condiment bins
Cabinet Base	Enclosed black cabinet base with stainless steel doors
Casters	Heavy-duty locking swivel casters with level setting
Grill Light	COB handle-mount grill light included
Propane Tank Access	Pull-out tank drawer for easy changes (Propane models)
Control Panel Lights	Built-in lights
Fuel Type	Propane (LP) or Natural Gas (NG) – 10 ft natural gas hose included
Weight	270 lbs (LP Model) / 270 lbs (NG Model)



Downloads:

---

• Assembly Manual
• Manual LP
• Manual NG
